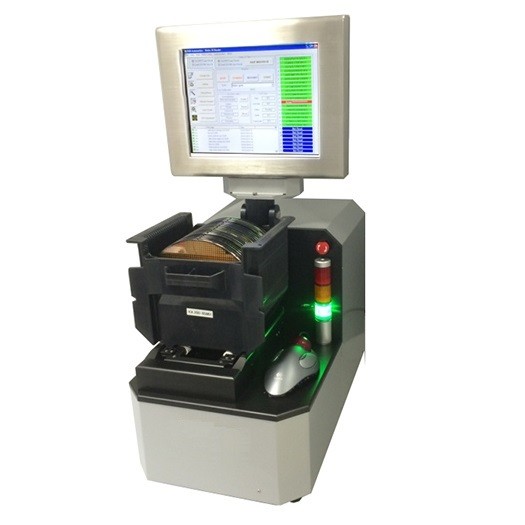

ID Reader 8″


Product description

ID Reader 8″ is the best tool to avoid lot errors. Designed for using 200mm – 8″ notch aligner and OCR system, it checks your carrier tag, reads each wafer scribes, then sends the information to your Host with SECSII Gem commands

  • Front and Back Wafer Identification
  • Fully automatic
  • Hands Free
  • With its integrated Notch/Flat Finder, the R2D Wafer ID reader is able to read a complete batch of 25 wafers in less than 1.5 min
  • With its flat panel PC and the use of a friendly interface, theoperator can read any wafer ID and slot position inside thecarrier with just a click
  • Equipped with the Cognex Insight 1741 or 1742 vision system,the CWIR provides high performance wafer identification
  • Using the Cognex OCR 1740 Series

Product information

Key system features

  • Table top machine
  • 12” color LCD Touchscreen
  • Integrated notch or flat aligner
  • Cognex 1741 or 1742 OCR
  • Automatic mapping system
  • TCP/IP Host connection

Standard safety features

  • Wafer detection in cassette
  • Current limiters on all motors
  • Error message and cycles recorded
  • Clean concept documentation
  • Light tower

Performance

  • MTBF: > 4000 hours
  • Uptime: > 99.8 %
  • MTTR: < 1hr
  • Throughput: < 1.5 min

Specifications

  • CE certification
  • SEMI Standard
  • Class 1

Facilities and Requirements

  • Vacuum: No
  • Power: 100-240 VAC
  • Frequency: 50-60 Hz
  • Full Load Amps: 1.2-0.6 A

Options

  • SECS/GEM communication
  • Bar Code – Gun or fixed cassettes reader
  • Frontside, Backside or both reading
  • Automatic BCR and RFID
